The foam bladder tank is a steel pressure vessel tank fitted with an internal bladder that stores foam concentrate. Foam system bladder tanks provide high quality, reliable and cost savings foam fire protection which used for prone to fire accident of various areas. Water is used for the outside surface of the bladder, replacing foam gathered in the inside of the bladder during the foam bladder tank operation, which is injected into the water stream . In addition to the water pressure, there is no external force as the foam bladder tank pressure.
ANSON foam bladder tank is mainly consist of automatic foam proportioning system, foam tank, capsule, pressure proportioner. relief valve, water inlet pipe, foam concentrate outlet pipe, water drain valve, foam concentrate drain valve, air relief valve, etc.

ANSON Foam Bladder Tank Data Sheet

Ratio of Foam Liquid		3%- 6%
Installing Type		Horizontal, Vertical
Volume Capacity		200L to 15,000L
Rate of Flow		80S/L
Media		Water,Foam,Foam Mixer(AFFF3%)
Working Pressure		0.8MPa
Foam Tank Color		Red or any other color you request
Certificate		ISO, CCC
Foam Tank Material		Carbon Steel, Stainless Steel
Fire Foam Tank Model		PHYM
Foam Bladder Tank Accessories		Foam Tank, Ball Valve, Foam Capsules
Manufactured Standard		GB20031-2005, ASME, CE marked, ASTM
Working Pressure		0.6~1.2MPa
Nominal Pressure		1.0MPa
System Text Pressure	Strength Test	1.5MPa
	Seal Test	1.32MPa
Tank Volume		0.5~13m3
Proportioning Mixer		PHY4~PHY100
Foam Proportional		3% or 6%
Pressure Decreases		≤0.15MPa

Vertical And Horizontal Foam Bladder Tank Sizing

Vertical Foam Bladder Tank Without Ratio Controller

1. Foam vent valve
2. Bladder
3. Tank
4. Foam level indicator
5. Foam concentrate fill / drain valve
6. Foam level indicator valve
7. Water drain valve
8. Water inlet flange
9. Water vent valve
10. Thermal relife valve
11. Foam outlet flange
12. Earth lug

Horizontal Foam Bladder Tank Without Ratio Controller

Tank Water Vent Valve Thermal Safety Valve Water Inlet Flange

Foam Outlet Flange Foam Vent Valve Earth Lug Water Drain Valve

Foam Concentrate Fill / Drain Valve Foam Level Indicator Valve Analog Level Indicator Lifting Lug

Vertical Prepiped Foam Bladder Tank

Thermal Relief Valve Tank Tank Pressure Guage Foam Concentrate Shut-off Valve Water Shut-off Valve Ratio Controller MIX Type Water Drain Valve

Foam Level Indicator Valve Foam Concentrate Fill / Drain Valve Analog Level Indicator Foam Pump Suction Hose(Optional) Ratio Controller Drain Valve Foam Filling Pump Foam Orifice w / Check Valve

Foam Pump Delivery Hose(optional) Earth Lug Water Vent Valve Foam Vent Valve Foam Concentrate Control Valve(optional)

Horizontal Prepiped Foam Bladder Tank

Tank Lifting Lug Tank Pressure Guage Foam Concentrate Shut-off Valve Water Shut-off Valve Ratio Controller MIX Type Water Drain Valve

Foam Level Indicator Valve Foam Concentrate Fill / Drain Valve Analog Level Indicator Foam Pump Suction Hose(Optional) Ratio Controller Drain Valve Foam Filling Pump (optional) Foam Orifice w / Check Valve

Foam Pump Delivery Hose(optional) Earth Lug Water Vent Valve Foam Vent Valve Foam Control Valve (optional) Thermal Relief Valve

Vertical Prepiped Foam Bladder Tank With Wide Range Ratio Controller

Thermal Relief Valve Tank Tank Pressure Guage Foam Concentrate Shut-off Valve Water Shut-off Valve Wide Range Ratio Controller KWR Water Drain Valve

Foam Level Indicator Valve Foam Concentrate Fill / Drain Valve Analog Level Indicator Foam Pump Suction Hose(Optional) Ratio Controller Drain Valve Foam Filling Pump (optional) Check Valve

Foam Pump Delivery Hose(optional) Earth Lug Water Vent Valve Foam Vent Valve Foam Concentrate Control Valve (optional)

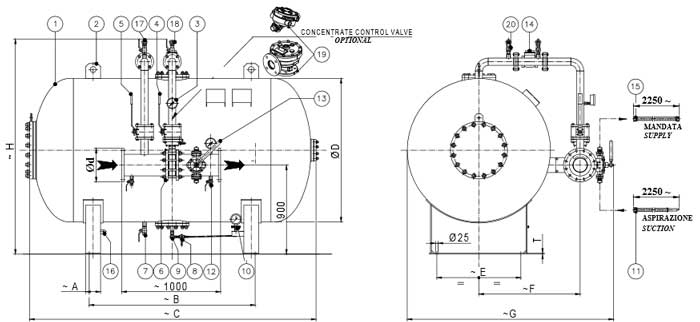

Horizontal Prepiped Foam Bladder Tank With Wide Range Ratio Controller

Tank Lifting Lug Tank Pressure Guage Foam Concentrate Shut-off Valve Water Shut-off Valve Ratio Controller KWR Type Water Drain Valve

Foam Level Indicator Valve Foam Concentrate Fill / Drain Valve Analog Level Indicator Foam Pump Suction Hose(Optional) Ratio Controller Drain Valve Foam Filling Pump (optional) Foam Check Valve

Foam Pump Delivery Hose(optional) Earth Lug Water Vent Valve Foam Vent Valve Foam Control Valve (optional) Thermal Relief Valve
